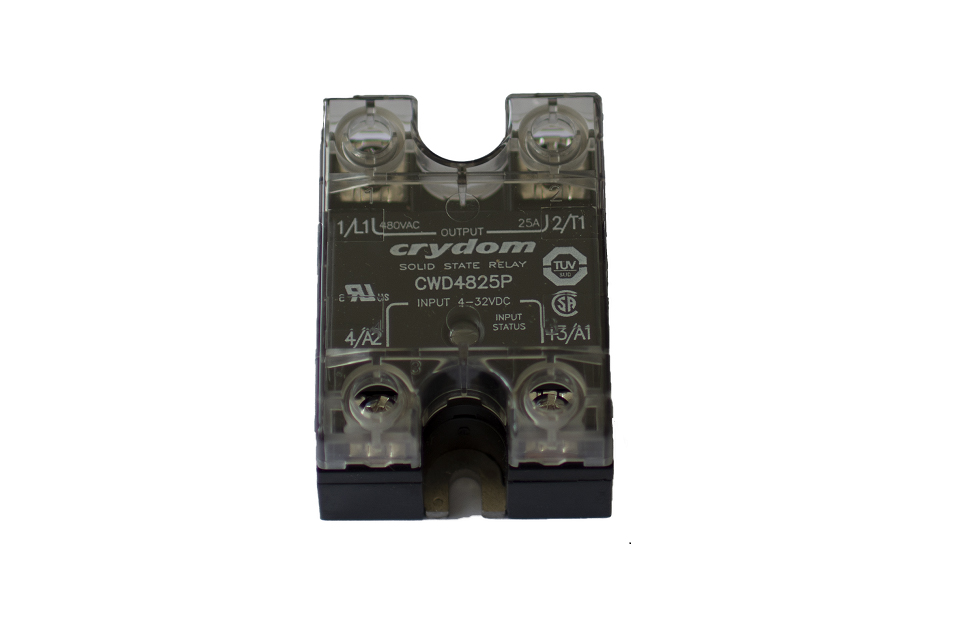

CW系列面板安装 单相交流输出固态继电器
CW 系列 Crydom CW系列面板安装交流输出固态继电器提供背靠背 SCR 输出，可靠地切换商业和重型工业负载。这种类型的高性能 SSR 的输出额定值在 24 到 660 VAC 下为 10 安培到 125 安培。
CW 系列面板安装固态继电器包含一个移动式 IP20“安全触摸型”外壳，增加了安全性，还提供零电压接通（对于电阻负载）或瞬时接通（对于电感负载）输出。
CW 系列面板安装固态继电器的其他特点包括：- 导热性能出色的 DBC 基板
- 3-32 VDC、18-36 VAC、90-280 VAC 以及通用 AC/DC 控制输入选项
- LED 输入指示灯
- 符合 EMC 第 3 级
- C-UL-US 认证并符合 CE 和 RoHS 标准
| 产品型号 | 控制电压 | 最大负载电流 | 线电压范围 | 安装 |
|---|---|---|---|---|
| CWA4825 | 90-280 VAC | 25 A | 48-660 VAC | Panel |
| CWA4825-10 | 90-280 VAC | 25 A | 48-660 VAC | Panel |
| CWA4825E | 18-36 VAC | 25 A | 48-660 VAC | Panel |
| CWA4825E-10 | 18-36 VAC | 25 A | 48-660 VAC | Panel |
| CWA4850 | 90-280 VAC | 50 A | 48-660 VAC | Panel |
| CWA4850-10 | 90-280 VAC | 50 A | 48-660 VAC | Panel |
| CWA4850E | 18-36 VAC | 50 A | 48-660 VAC | Panel |
| CWA4850E-10 | 18-36 VAC | 50 A | 48-660 VAC | Panel |
| CWA4890 | 90-280 VAC | 90 A | 48-660 VAC | Panel |
| CWA4890-10 | 90-280 VAC | 90 A | 48-660 VAC | Panel |
| CWA4890E | 18-36 VAC | 90 A | 48-660 VAC | Panel |
| CWA4890E-10 | 18-36 VAC | 90 A | 48-660 VAC | Panel |
| CWD2410 | 3-32 VDC | 10 A | 24-280 VAC | Panel |
| CWD2410-10 | 3-32 VDC | 10 A | 24-280 VAC | Panel |
| CWD24125 | 3-32 VDC | 125 A | 24-280 VAC | Panel |
| CWD24125-10 | 3-32 VDC | 125 A | 24-280 VAC | Panel |
| CWD2425 | 3-32 VDC | 25 A | 24-280 VAC | Panel |
| CWD2425-10 | 3-32 VDC | 25 A | 24-280 VAC | Panel |
| CWD2450 | 3-32 VDC | 50 A | 24-280 VAC | Panel |
| CWD2450-10 | 3-32 VDC | 50 A | 24-280 VAC | Panel |
| CWD2490 | 3-32 VDC | 90 A | 24-280 VAC | Panel |
| CWD2490-10 | 3-32 VDC | 90 A | 24-280 VAC | Panel |
| CWD4810 | 4-32 VDC | 10 A | 48-660 VAC | Panel |
| CWD4810-10 | 4-32 VDC | 10 A | 48-660 VAC | Panel |
| CWD48125 | 4-32 VDC | 125 A | 48-660 VAC | Panel |
| CWD48125-10 | 4-32 VDC | 125 A | 48-660 VAC | Panel |
| CWD4825 | 4-32 VDC | 25 A | 48-660 VAC | Panel |
| CWD4825-10 | 4-32 VDC | 25 A | 48-660 VAC | Panel |
| CWD4850 | 4-32 VDC | 50 A | 48-660 VAC | Panel |
| CWD4850-10 | 4-32 VDC | 50 A | 48-660 VAC | Panel |
| CWD4890 | 4-32 VDC | 90 A | 48-660 VAC | Panel |
| CWD4890-10 | 4-32 VDC | 90 A | 48-660 VAC | Panel |
| CWU2410 | 20-48 VDC/20-280 VAC | 10 A | 24-280 VAC | Panel |
| CWU2410-10 | 20-48 VDC/20-280 VAC | 10 A | 24-280 VAC | Panel |
| CWU2410H | 20-48 VDC/20-280 VAC | 10 A | 24-280 VAC | Panel |
| CWU2410H-10 | 20-48 VDC/20-280 VAC | 10 A | 24-280 VAC | Panel |
| CWU2410P | 20-48 VDC/20-280 VAC | 10 A | 24-280 VAC | Panel |
| CWU2410P-10 | 20-48 VDC/20-280 VAC | 10 A | 24-280 VAC | Panel |
| CWU2410PH | 20-48 VDC/20-280 VAC | 10 A | 24-280 VAC | Panel |
| CWU2410PH-10 | 20-48 VDC/20-280 VAC | 10 A | 24-280 VAC | Panel |
| CWU24125 | 20-48 VDC/20-280 VAC | 125 A | 24-280 VAC | Panel |
| CWU24125-10 | 20-48 VDC/20-280 VAC | 125 A | 24-280 VAC | Panel |
| CWU24125H | 20-48 VDC/20-280 VAC | 125 A | 24-280 VAC | Panel |
| CWU24125H-10 | 20-48 VDC/20-280 VAC | 125 A | 24-280 VAC | Panel |
| CWU24125P | 20-48 VDC/20-280 VAC | 125 A | 24-280 VAC | Panel |
| CWU24125P-10 | 20-48 VDC/20-280 VAC | 125 A | 24-280 VAC | Panel |
| CWU24125PH | 20-48 VDC/20-280 VAC | 125 A | 24-280 VAC | Panel |
| CWU24125PH-10 | 20-48 VDC/20-280 VAC | 125 A | 24-280 VAC | Panel |
| CWU2425 | 20-48 VDC/20-280 VAC | 25 A | 24-280 VAC | Panel |
| CWU2425-10 | 20-48 VDC/20-280 VAC | 25 A | 24-280 VAC | Panel |
| CWU2425H | 20-48 VDC/20-280 VAC | 25 A | 24-280 VAC | Panel |
| CWU2425H-10 | 20-48 VDC/20-280 VAC | 25 A | 24-280 VAC | Panel |
| CWU2425P | 20-48 VDC/20-280 VAC | 25 A | 24-280 VAC | Panel |
| CWU2425P-10 | 20-48 VDC/20-280 VAC | 25 A | 24-280 VAC | Panel |
| CWU2425PH | 20-48 VDC/20-280 VAC | 25 A | 24-280 VAC | Panel |
| CWU2425PH-10 | 20-48 VDC/20-280 VAC | 25 A | 24-280 VAC | Panel |
| CWU2450 | 20-48 VDC/20-280 VAC | 50 A | 24-280 VAC | Panel |
| CWU2450-10 | 20-48 VDC/20-280 VAC | 50 A | 24-280 VAC | Panel |
| CWU2450H | 20-48 VDC/20-280 VAC | 50 A | 24-280 VAC | Panel |
| CWU2450H-10 | 20-48 VDC/20-280 VAC | 50 A | 24-280 VAC | Panel |
| CWU2450P | 20-48 VDC/20-280 VAC | 50 A | 24-280 VAC | Panel |
| CWU2450P-10 | 20-48 VDC/20-280 VAC | 50 A | 24-280 VAC | Panel |
| CWU2450PH | 20-48 VDC/20-280 VAC | 50 A | 24-280 VAC | Panel |
| CWU2450PH-10 | 20-48 VDC/20-280 VAC | 50 A | 24-280 VAC | Panel |
| CWU2490 | 20-48 VDC/20-280 VAC | 90 A | 24-280 VAC | Panel |
| CWU2490-10 | 20-48 VDC/20-280 VAC | 90 A | 24-280 VAC | Panel |
| CWU2490H | 20-48 VDC/20-280 VAC | 90 A | 24-280 VAC | Panel |
| CWU2490H-10 | 20-48 VDC/20-280 VAC | 90 A | 24-280 VAC | Panel |
| CWU2490P | 20-48 VDC/20-280 VAC | 90 A | 24-280 VAC | Panel |
| CWU2490P-10 | 20-48 VDC/20-280 VAC | 90 A | 24-280 VAC | Panel |
| CWU2490PH | 20-48 VDC/20-280 VAC | 90 A | 24-280 VAC | Panel |
| CWU2490PH-10 | 20-48 VDC/20-280 VAC | 90 A | 24-280 VAC | Panel |
| CWU4810 | 20-48 VDC/20-280 VAC | 10 A | 48-660 VAC | Panel |
| CWU4810-10 | 20-48 VDC/20-280 VAC | 10 A | 48-660 VAC | Panel |
| CWU4810H | 20-48 VDC/20-280 VAC | 10 A | 48-660 VAC | Panel |
| CWU4810H-10 | 20-48 VDC/20-280 VAC | 10 A | 48-660 VAC | Panel |
| CWU4810P | 20-48 VDC/20-280 VAC | 10 A | 48-660 VAC | Panel |
| CWU4810P-10 | 20-48 VDC/20-280 VAC | 10 A | 48-660 VAC | Panel |
| CWU4810PH | 20-48 VDC/20-280 VAC | 10 A | 48-660 VAC | Panel |
| CWU4810PH-10 | 20-48 VDC/20-280 VAC | 10 A | 48-660 VAC | Panel |
| CWU48125 | 20-48 VDC/20-280 VAC | 125 A | 48-660 VAC | Panel |
| CWU48125-10 | 20-48 VDC/20-280 VAC | 125 A | 48-660 VAC | Panel |
| CWU48125H | 20-48 VDC/20-280 VAC | 125 A | 48-660 VAC | Panel |
| CWU48125H-10 | 20-48 VDC/20-280 VAC | 125 A | 48-660 VAC | Panel |
| CWU48125P | 20-48 VDC/20-280 VAC | 125 A | 48-660 VAC | Panel |
| CWU48125P-10 | 20-48 VDC/20-280 VAC | 125 A | 48-660 VAC | Panel |
| CWU48125PH | 20-48 VDC/20-280 VAC | 125 A | 48-660 VAC | Panel |
| CWU48125PH-10 | 20-48 VDC/20-280 VAC | 125 A | 48-660 VAC | Panel |
| CWU4825 | 20-48 VDC/20-280 VAC | 25 A | 48-660 VAC | Panel |
| CWU4825-10 | 20-48 VDC/20-280 VAC | 25 A | 48-660 VAC | Panel |
| CWU4825H | 20-48 VDC/20-280 VAC | 25 A | 48-660 VAC | Panel |
| CWU4825H-10 | 20-48 VDC/20-280 VAC | 25 A | 48-660 VAC | Panel |
| CWU4825P | 20-48 VDC/20-280 VAC | 25 A | 48-660 VAC | Panel |
| CWU4825P-10 | 20-48 VDC/20-280 VAC | 25 A | 48-660 VAC | Panel |
| CWU4825PH | 20-48 VDC/20-280 VAC | 25 A | 48-660 VAC | Panel |
| CWU4825PH-10 | 20-48 VDC/20-280 VAC | 25 A | 48-660 VAC | Panel |
| CWU4850 | 20-48 VDC/20-280 VAC | 50 A | 48-660 VAC | Panel |
| CWU4850-10 | 20-48 VDC/20-280 VAC | 50 A | 48-660 VAC | Panel |
| CWU4850H | 20-48 VDC/20-280 VAC | 50 A | 48-660 VAC | Panel |
| CWU4850H-10 | 20-48 VDC/20-280 VAC | 50 A | 48-660 VAC | Panel |
| CWU4850P | 20-48 VDC/20-280 VAC | 50 A | 48-660 VAC | Panel |
| CWU4850P-10 | 20-48 VDC/20-280 VAC | 50 A | 48-660 VAC | Panel |
| CWU4850PH | 20-48 VDC/20-280 VAC | 50 A | 48-660 VAC | Panel |
| CWU4850PH-10 | 20-48 VDC/20-280 VAC | 50 A | 48-660 VAC | Panel |
| CWU4890 | 20-48 VDC/20-280 VAC | 90 A | 48-660 VAC | Panel |
| CWU4890-10 | 20-48 VDC/20-280 VAC | 90 A | 48-660 VAC | Panel |
| CWU4890H | 20-48 VDC/20-280 VAC | 90 A | 48-660 VAC | Panel |
| CWU4890H-10 | 20-48 VDC/20-280 VAC | 90 A | 48-660 VAC | Panel |
| CWU4890P | 20-48 VDC/20-280 VAC | 90 A | 48-660 VAC | Panel |
| CWU4890P-10 | 20-48 VDC/20-280 VAC | 90 A | 48-660 VAC | Panel |
| CWU4890PH | 20-48 VDC/20-280 VAC | 90 A | 48-660 VAC | Panel |
| CWU4890PH-10 | 20-48 VDC/20-280 VAC | 90 A | 48-660 VAC | Panel |
| CWA2410 | 90-280 VAC | 10 A | 24-280 VAC | Panel |
| CWA2410-10 | 90-280 VAC | 10 A | 24-280 VAC | Panel |
| CWA2410E | 18-36 VAC | 10 A | 24-280 VAC | Panel |
| CWA2410E-10 | 18-36 VAC | 10 A | 24-280 VAC | Panel |
| CWA24125 | 90-280 VAC | 125 A | 24-280 VAC | Panel |
| CWA24125-10 | 90-280 VAC | 125 A | 24-280 VAC | Panel |
| CWA24125E | 18-36 VAC | 125 A | 24-280 VAC | Panel |
| CWA24125E-10 | 18-36 VAC | 125 A | 24-280 VAC | Panel |
| CWA2425 | 90-280 VAC | 25 A | 24-280 VAC | Panel |
| CWA2425-10 | 90-280 VAC | 25 A | 24-280 VAC | Panel |
| CWA2425E | 18-36 VAC | 25 A | 24-280 VAC | Panel |
| CWA2425E-10 | 18-36 VAC | 25 A | 24-280 VAC | Panel |
| CWA2450 | 90-280 VAC | 50 A | 24-280 VAC | Panel |
| CWA2450-10 | 90-280 VAC | 50 A | 24-280 VAC | Panel |
| CWA2450E | 18-36 VAC | 50 A | 24-280 VAC | Panel |
| CWA2450E-10 | 18-36 VAC | 50 A | 24-280 VAC | Panel |
| CWA2490 | 90-280 VAC | 90 A | 24-280 VAC | Panel |
| CWA2490-10 | 90-280 VAC | 90 A | 24-280 VAC | Panel |
| CWA2490E | 18-36 VAC | 90 A | 24-280 VAC | Panel |
| CWA2490E-10 | 18-36 VAC | 90 A | 24-280 VAC | Panel |
| CWA4810 | 90-280 VAC | 10 A | 48-660 VAC | Panel |
| CWA4810-10 | 90-280 VAC | 10 A | 48-660 VAC | Panel |
| CWA4810E | 18-36 VAC | 10 A | 48-660 VAC | Panel |
| CWA4810E-10 | 18-36 VAC | 10 A | 48-660 VAC | Panel |
| CWA48125 | 90-280 VAC | 125 A | 48-660 VAC | Panel |
| CWA48125-10 | 90-280 VAC | 125 A | 48-660 VAC | Panel |
| CWA48125E | 18-36 VAC | 125 A | 48-660 VAC | Panel |
| CWA48125E-10 | 18-36 VAC | 125 A | 48-660 VAC | Panel |
